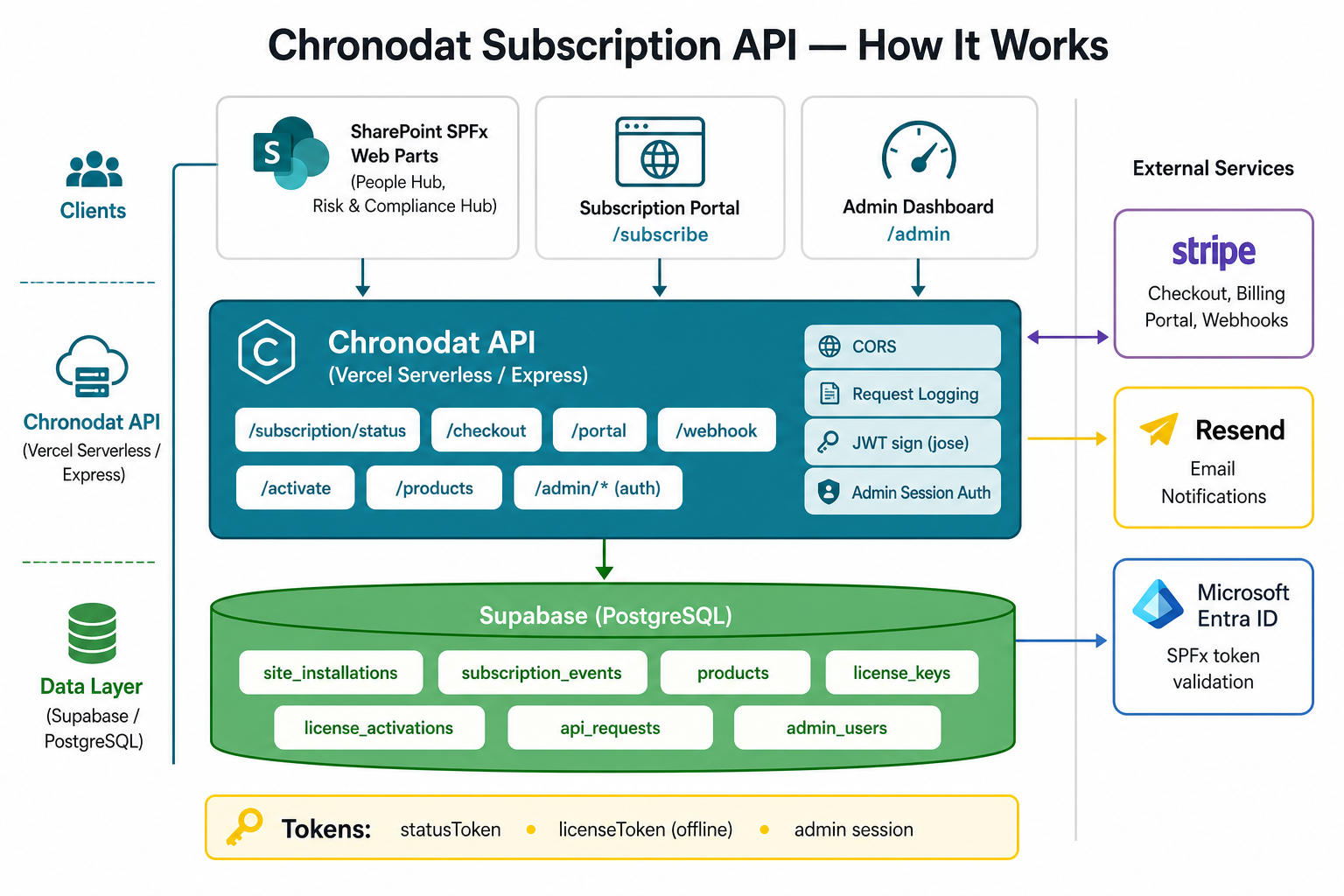

Architecture

The Chronodat Subscription API is a Vercel serverless layer that sits between your clients (SPFx web parts, the subscription portal, and the admin dashboard) and the services that hold state — Supabase, Stripe, Resend, and Microsoft Entra ID.

Request flow

1. Access check. An SPFx web part calls GET /api/subscription/status. The API validates the caller's Entra (AAD) token, looks up the site in spfx_site_installations, and returns trialing / active / expired plus a signed statusToken.
2. Subscribe. From /subscribe (or the web part), POST /api/subscription/checkout resolves the product's Stripe price from the spfx_products table and returns a Stripe Checkout URL.
3. Stripe webhooks. Stripe calls POST /api/subscription/webhook; the API updates the site record, logs a row in spfx_subscription_events, and triggers a Resend email.
4. Offline licensing. POST /api/subscription/activate validates a key from spfx_license_keys, records the activation, and issues a long-lived licenseToken (RS256 JWT) the client verifies offline against the public signing key.
5. Admin. /admin/* pages authenticate via POST /api/admin/login against spfx_admin_users and use a signed session token to manage products, sites, and license keys.
6. Observability. Every request is logged to spfx_api_requests and surfaced on the Subscriptions → API requests page.

How it works

Billing is per SharePoint site. Your web part calls this API; Stripe secrets never go in SPFx code.

1. Configure CORS

Set APP_ORIGIN on Vercel so SharePoint origins can call the API from the browser.

2. Web part property pane

3. Get tenant context from SPFx

Use the Azure AD tenant ID on every API call. The first status request starts the 14-day trial.

import { WebPartContext } from '@microsoft/sp-webpart-base';

export function getTenantId(context: WebPartContext): string {
  return context.pageContext.aadInfo?.tenantId?.toString() ?? '';
}

export function getUserEmail(context: WebPartContext): string {
  return context.pageContext.user.email;
}

export function getSiteUrl(context: WebPartContext): string {
  return context.pageContext.web.absoluteUrl;
}

4. Subscription service

Add src/services/SubscriptionService.ts to your SPFx project:

export interface SubscriptionStatus {
  status: 'trialing' | 'active' | 'past_due' | 'expired';
  hasAccess: boolean;
  trialDaysTotal: number;
  trialDaysRemaining: number;
  trialEndsAt?: string;
  currentPeriodEnd?: string;
  customerEmail?: string;
}

export class SubscriptionService {
  constructor(private readonly apiBaseUrl: string) {
    this.apiBaseUrl = apiBaseUrl.replace(/\/+$/, '');
  }

  async getStatus(params: {
    tenantId: string;
    userEmail?: string;
    siteUrl?: string;
  }): Promise<SubscriptionStatus> {
    const qs = new URLSearchParams({ tenantId: params.tenantId });
    if (params.userEmail) qs.set('userEmail', params.userEmail);
    if (params.siteUrl) qs.set('siteUrl', params.siteUrl);

    const res = await fetch(`${this.apiBaseUrl}/api/subscription/status?${qs}`);
    if (!res.ok) {
      const body = await res.json().catch(() => ({}));
      throw new Error(body.error ?? `Status failed (${res.status})`);
    }
    return res.json();
  }

  async startCheckout(params: {
    tenantId: string;
    userEmail: string;
    successUrl: string;
    cancelUrl: string;
    siteUrl?: string;
    tenantName?: string;
  }): Promise<string> {
    const res = await fetch(`${this.apiBaseUrl}/api/subscription/checkout`, {
      method: 'POST',
      headers: { 'Content-Type': 'application/json' },
      body: JSON.stringify(params)
    });
    if (!res.ok) throw new Error((await res.json().catch(() => ({}))).error ?? 'Checkout failed');
    return (await res.json()).url;
  }

  async openBillingPortal(params: { tenantId: string; returnUrl: string }): Promise<string> {
    const res = await fetch(`${this.apiBaseUrl}/api/subscription/portal`, {
      method: 'POST',
      headers: { 'Content-Type': 'application/json' },
      body: JSON.stringify(params)
    });
    if (!res.ok) throw new Error((await res.json().catch(() => ({}))).error ?? 'Portal failed');
    return (await res.json()).url;
  }
}

5. Offline license keys (one key = one site)

Admins generate keys at /admin/license-keys. Each key activates one SharePoint site and returns a long-lived licenseToken JWT for offline access.

const res = await fetch(`${apiBaseUrl}/api/subscription/activate`, {
  method: 'POST',
  headers: { 'Content-Type': 'application/json', Accept: 'application/json' },
  body: JSON.stringify({
    licenseKey: 'CDAT-DEFA-A1B2-C3D4-E5F6',
    tenantId: getTenantId(context),
    siteUrl: getSiteUrl(context),
    siteId: context.pageContext.site.id?.toString(),
    productSlug: 'default'
  })
});
const status = await res.json();
// status.licenseToken → cache in localStorage for offline verification

Copy the reference client from docs/spfx/OfflineLicenseService.ts in this repository. Install jose in your SPFx project for JWT signature verification.

Access check order

1. Verify cached licenseToken offline (signature + expiry)
2. If unavailable, call GET /api/subscription/status online
3. If no access, show license key form or Stripe subscribe

6. Check access on web part load

const apiUrl = this.properties.subscriptionApiUrl?.trim();
if (this.properties.skipSubscriptionCheck || !apiUrl) return; // dev bypass

const service = new SubscriptionService(apiUrl);
const status = await service.getStatus({
  tenantId: getTenantId(this.context),
  userEmail: getUserEmail(this.context),
  siteUrl: getSiteUrl(this.context)
});

if (!status.hasAccess) {
  // Show paywall — trial expired
  return;
}

// trialing, active, or past_due — render web part

Status → UI mapping

7. Subscribe & manage billing

const pageUrl = window.location.href.split('?')[0];

const url = await service.startCheckout({
  tenantId: getTenantId(this.context),
  userEmail: getUserEmail(this.context),
  successUrl: pageUrl,
  cancelUrl: pageUrl,
  siteUrl: getSiteUrl(this.context)
});
window.location.href = url;

Or link users to the hosted portal for testing:

API reference

Status response example

{
  "status": "trialing",
  "hasAccess": true,
  "trialDaysTotal": 14,
  "trialDaysRemaining": 12,
  "trialEndsAt": "2026-06-28T10:00:00.000Z",
  "customerEmail": "user@contoso.com"
}

Production checklist

• API deployed with Supabase + Stripe env vars
• Optional: RESEND_API_KEY + verified RESEND_FROM for SPFx email notifications
• APP_ORIGIN=sharepoint-online on Vercel
• Stripe webhook → /api/subscription/webhook
• Web part Subscription API URL set (no trailing slash)
• Skip subscription check = off in production
• Test: new tenant → trialing → checkout → active
• License keys: generate at /admin/license-keys → activate via SPFx or /subscribe
• Optional JWT keys for statusToken / licenseToken offline verification
